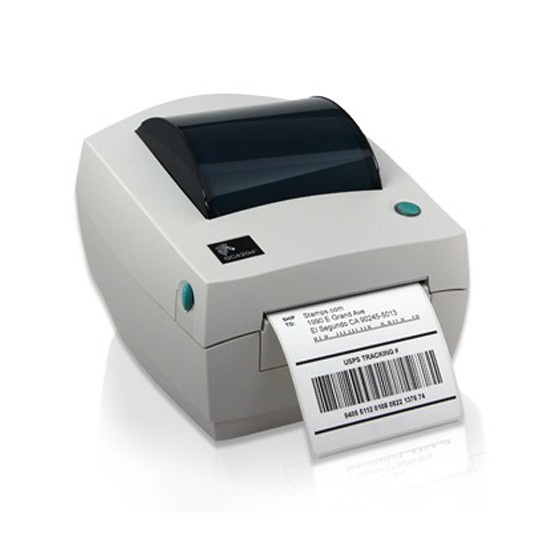

Printer Barcod Zebra GC420t
Call for prices
| Print Length | 39”/990 mm |
| Print Method | Direct thermal and thermaltransfer, |
| Print Speed | 4”/102 mm per second maximum |
| Print Width | 4.09”/104 mm |
| Printer Head | EZPL (ZPL, ZPL IIand EPL2) |
| Resolution | 203 dpi/8 dots per mm |
| Media Characteristics | |
| Label Length | 0.38”/9.6 mm to 39”/990 mm |
| Media Core Diameter | 1.5”/38 mm I.D. core |
| Media Roll Diameter | 5”/127 mm O.D. on a 1.00”/25.4 mm, |
| Media Sensor | Reflective and transmissive sensors |
| Media Thickness | 0.003”/0.08 mm to 0.007”/0.18 mm |
| Media Type | Roll-fed or fan foldLabel stock (die cut or continous, directthermal or thermal transfer) Tag stock (die cut or continous, direct thermalor thermal transfer)Receipt paper (continous, direct thermal)Wristband stock (direct thermal orthermal transfer) |
| Media Width | 1.00”/25.4 mm to 4.25”/108 mm |
| Ribbon Characteristics | |
| Ribbon Length | 244’ (74 m) |
| Ribbon Roll Diameter | 1.34”/34 mm |
| Ribbon Type | 1:1 One ribbon per roll of media |
| Ribbon Width | 1.33”/33.8 mm to 4.3”/110 mm |
| Core Inner Diameter | 0.5”/12.7 mm |
| Performance Characteristics | |
| Memory | 8 MB Flash, 8 MB SDRAM (standard) |
| Processor | 32 bit RISC processor |
| Fonts / Graphics / Symbologies | |
| Barcode Symbologies | 1D:Bar Code Ratios: 2:1 (non-rotated) and 3:1• Linear Bar Codes: Code 11, Code 39, Code 93,Code 128A, B & C (User selectable/Auto), UCC/EAN-128, Code 128, UPC-A, UPC-E, EAN-8,EAN-13, EAN-14, UPC-A and UPC-E with EAN2 or 5 digit extensions, UPC-E with 2 and 5add on, Plessey, POSTNET, Standard 2 of 5,Industrial 2 of 5, Interleaved 2 of 5, LOGMARS,MSI, Codabar, and GS1 DataBar™ (formerlyRSS), Postnet (5, 9, 11 & 13 digit) JapanesePostnet, Plessey (MSI-1), MSI-3, German PostCode, RSS-14 (limited, truncated, stacked). |
| 2D:2-Dimensional: PDF417 (MicroPDF-417 andMacroPDF-417), Code 49, Maxicode, Codablock,Data Matrix, QR code, and Aztec.QR Code | |
| Character Sets | 16 resident expandable ZPL fonts |
| Character Size | One resident scalable ZPL font5 resident expandable EPL2 fonts |
| Graphics | Supports user-defined fonts and graphics—including custom logos |
| Software | |
| SDK | ZebraDesigner™ Pro—An intuitive, easy-to-usesoftware program for creating complex labeldesigns (option)ZebraDesigner—Offers basic features for simplelabel designZebraDesigner Driver—The most powerful driveravailable from Zebra |
| Environment Characteristics | |
| Humidity | Operating Humidity: 10% to 90%non-condensing R.H.Storage Humidity: 5% to 95%non-condensing R.H. |
| Operating Environment | Operating Temp: 40° F/5° C to 105° F/41° C |
| Storage Environment | Storage Temp: -40° F/-40° C to 140° F/60° C |
| User Options | Dispenser—Label peel and present with labelpresent sensor |
| Physical Characteristics | |
| Dimensions (W x L x H) | 7.9”/201 mm6.8”/173 mm9.4”/239 mm |
| Weight | 3.2 lbs/1.5 kg |
| Options | |
| Accessories | KDU and KDU Plus™—Keyboard display unitsfor stand-alone printing applications |
| Regulatory Approvals | TUV-R NRTL, TUV-R CB, NOM, KCC, CE, FCCClass-B |
